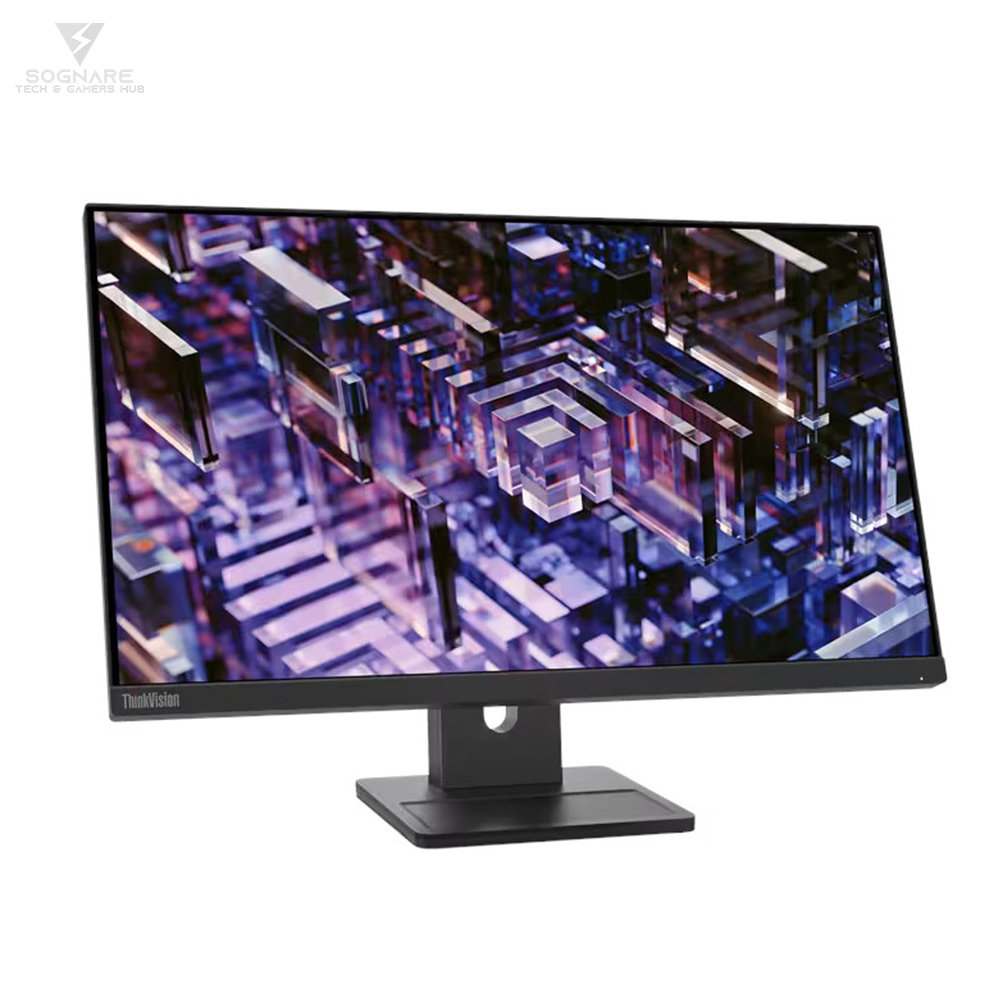

ThinkVision E24q-30
ThinkVision E24q-30
Product Highlights:
- 23.8-inch QHD NearEdgeless display
- 99% sRGB color accuracy & 100Hz refresh rate
- Natural Low Blue Light technology
- Ergonomic LTPS stand
Description
Description
Experience stunning clarity with the 23.8-inch 3-side NearEdgeless display, featuring QHD resolution for 1.77 times the pixel density of FHD. Enjoy distortion-free views from any angle with In-Plane Switching (IPS) and a wide 178° viewing angle. Vivid colors come to life with 99% sRGB, while a 100Hz refresh rate ensures fluid visuals. The 1300:1 contrast ratio adds rich depth, and Natural Low Blue Light technology reduces eye strain without altering color. Equipped with HDMI 2.0, DP 1.2, built-in speakers, and VESA mounting, it offers convenience, sustainability, and ergonomic comfort with LTPS adjustability and optimized cable management.
Collapsible content
ThinkVision E24q-30
Dimensions:
Depth | 178.6 mm (7.03 inch) |
Height | 497.2 mm (19.57 inch) |
Weight | 539.4 mm (21.24 inch) |
Stand:
Lift | 155 mm |
Tilt | -5° to 22° |
Swivel | 360° to 360° |
Pivot | -90° to 90° |
Weight:
Weight with stand assembly | 4.7 kg (10.4 lbs) |
Weight without stand assembly (For wall mount or VESA mount considerations - no cables) | 3.2 kg (7.0 lbs) |
VESA Mount:
Supported | 100 mm x 100 mm (3.94 inch x 3.94 inch) |
Image:
Viewable image size | 604.7 mm (23.8 inch) |
Maximum height | 296.5 mm (11.67 inch) |
Maximum width | 527.0 mm (20.75 inch) |
Pixel pitch | 0.2058 mm (0.008 inch) |
Power Input:
Supply voltage | 100-240V AC |
50-60Hz | |
Max supply current | 1.3 A |
Power consumption
(Note: Power consumption figures are for the monitor and the power supply combined):
Normal operation | <38.5 W (max) <16.0 W (typical) |
Standby/Suspend | <0.5 W |
Off | <0.3 W |
Video input (DP):
Interface | HDMI |
Horizontal addressability | 2560 pixels (max) |
Vertical addressability | 1440 lines (max) |
Clock frequency | 420 MHz |
Communications:
VESA DDC | CI |
Supported Display Modes:
Horizontal frequency | 30 kHz -155 kHz |
Vertical frequency | 48 Hz - 100 Hz |
Native Resolution | 2560 x 1440 at 60 Hz |
Temperature:
Operating | 0° to 40° C (32° to 104° F) |
Storage | -20° to 60° C (-4° to 140° F) |
Shipping | -20° to 60° C (-4° to 140° F) |
Humidity:
Operating | 8% to 80% non-condensing |
Storage | 5% to 95% non-condensing |
Shipping | 5% to 95% non-condensing |
