Matrix IP CCTV Solution Office Package
Matrix IP CCTV Solution Office Package

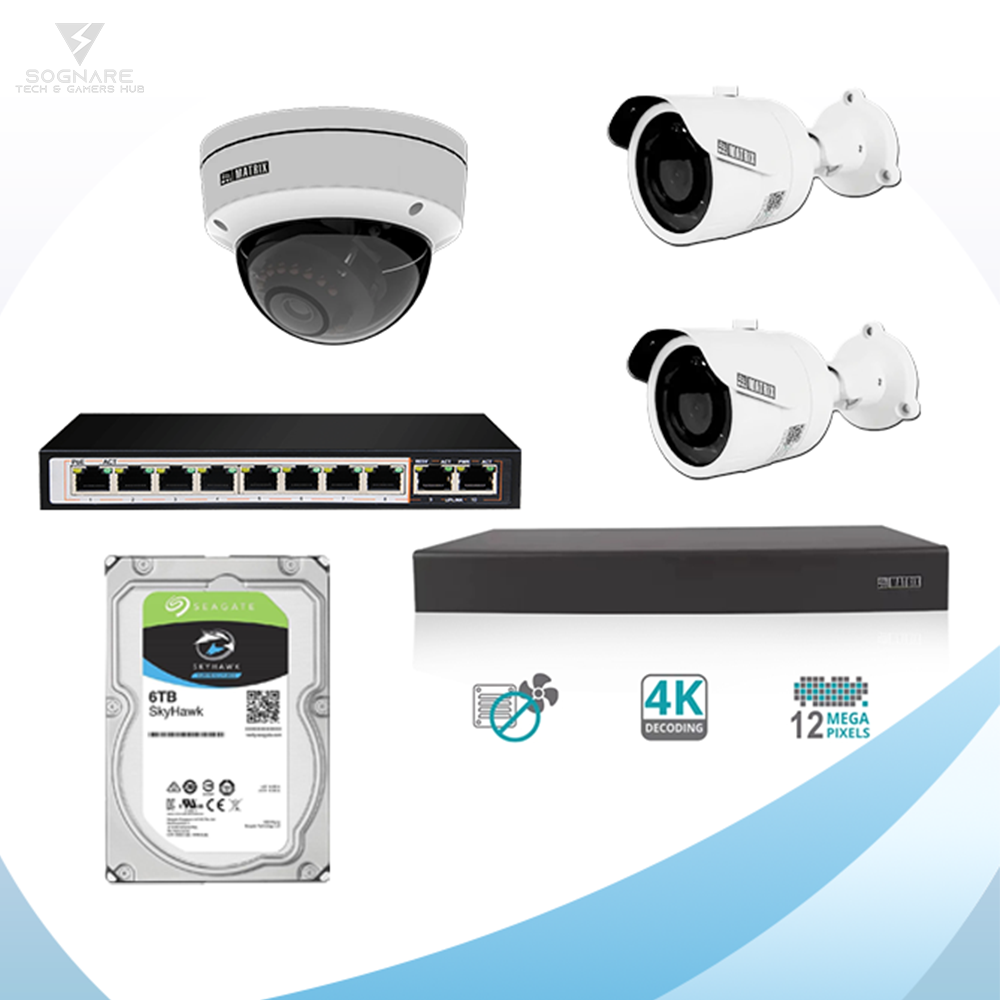

Package Includes:
- Matrix Satatya 2MP IR Bullet POE Camera (2 Units)
- Matrix Satatya 5MP IR Dome POE Camera (1 Unit)
- Matrix Satatya 4 Channel NVR with 4K Support and Seagate Skyhawk 6TB HDD (1 Set)
- D-Link 10-Port POE Switch (1 Unit)
- Setup and Installation (Materials Included) & SognareCare 1-Year Onsite Warranty, 9x5 Next Business Day (NBD), Parts & Labor
Description
Description
Secure your office with the Matrix IP CCTV Solution. This package includes two 2MP IR Bullet POE Cameras, one 5MP IR Dome POE Camera, a 4-Channel NVR with 4K support, and a 6TB Seagate Skyhawk HDD. It also features a D-Link 10-Port POE Switch. Professional setup, installation, and a 1-year SognareCare onsite warranty with next-business-day support are included.
Couldn't load pickup availability
Technical Specifications
Collapsible content
Matrix Satatya 2MP IR Bullet POE Camera
IMAGE SENSOR:
| Resolution | 2 MP (1920 x 1080) |
| Sensor Type and Size | - /2.8″ SONY – CMOS 2MP Active Pixel Progressive Scan - Back-Illuminated Image sensor (STARVIS Series) |
LENS:
| Minimum Illumination | - Color – 0.01 Lux @F1.2 (AGC ON) - Monochrome – 0 Lux |
||||||||||||||||||||
| Focal Length | - 2.8mm - 3.6mm - 6mm |
||||||||||||||||||||
| Focus Range | 0.3m to infinity | ||||||||||||||||||||
| Field of View (FOV) |
|
||||||||||||||||||||
| Lens Mount |
- Fixed Lens: M12x0.5 - Manual Varifocal Lens: M14 - Motorized Varifocal Lens: M14 |
||||||||||||||||||||
| Focus |
- Fixed for 2.8mm,3.6mm, 6mm - Manual Varifocal Iris for VL - Motorized Varifocal Iris for MVL |
||||||||||||||||||||
| Aperture (F#) |
- Fixed Lens: F 1.6/ F2.0 - Varifocal Lens: F1.6-F3.2 - Motorized Varifocal Lens: F1.6-F2.6 |
||||||||||||||||||||
| IR Range | Up to 50m | ||||||||||||||||||||
| IR Led Wavelength | 850nm | ||||||||||||||||||||
| IR Switching | Auto/ Manual |
AUDIO INTERFACE:
| Audio IN | 1, 3.5mm Audio Jack (For Premium Variants) |
| Audio OUT | 1, 3.5mm Audio Jack (For Premium Variants) |
| Two-way Audio | Supported |
| Audio Compression | G.726 and G.711µ |
| Alarm In | Yes Phoenix type (For Premium Variants) |
| Alarm Out | Yes Phoenix type (For Premium Variants) |
HARDWARE SPECIFICATIONS:
| SD Card | Up to 512GB |
| Camera Adjustment Angle | Pan – 0° to 360°, Tilt – 0° to 90°,Rotate – 0° to 360° |
IMAGE AND VIDEO:
| No. of Stream Profiles | 4 |
| Stream Profiles |
- Profile 1: 1080p(2MP)/720p/D1/2CIF/CIF up to 30 fps (H.265/H.264) - Profile 2: D1/2CIF/CIF up to 30fps (H.265/H.264) - Profile 3: 1080p(2MP)/720p/D1/2CIF/CIF up to 5 fps (MJPEG) - Profile 4: 720p/D1/2CIF/CIF up to 30 fps (H.265/H.264/MJPEG) |
| Available Resolutions | 1920 x 1080, 720p, D1,2CIF, CIF, VGA |
| Max Resolution | 1920 x 1080 |
| Bitrate | 128 kbps-8Mbps |
| Bitrate Type | CBR, VBR |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1-30fps |
| Shutter Speed | 1/15s -1/100000s |
| Adaptive Streaming | Yes |
| ONVIF Profiles | S, G, and T |
| Edge Recording | Yes |
| Alarm Recording | Pre and Post |
| Motion Recording | Yes |
| Time Triggered | Yes |
| Video Parameters | Snapshot, Region of Interest (ROI), BLC, Day/Night Settings |
| Privacy Masks | 3 |
| WDR | True WDR (120dB) |
| SNR | >70dB |
| Image Enhancement | Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR |
| DNR | 2D &3D |
| Video Analytics | Motion, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion |
ALERTS:
| IP Conflict | Yes |
| Network Disconnect | Yes |
| Storage Full | Yes |
EVENTS AND ACTIONS:
| Upload Image | SD, NAS, SFTP |
| Upload Clip | SD, NAS, SFTP |
| Notifications | E-mail, SMS, TCP |
PROTOCOLS SUPPORTED:
| Supported protocols | TCP/IP, HTTP, HTTPs, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, SNMP,UPnP, Bonjour |
| Web Viewer | Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0 |
| Browser | IE, Chrome, Mozilla |
CYBER SECURITY:
| Secure boot | Yes |
| Signed firmware | Yes |
| Data Encryption | All data, including sensitive data, is encrypted with AES 256 and RSA 2048 |
| IP Address Filtering | Yes |
| HTTPs Streaming | Yes, using TLS 1.2 |
| Edge Data Encryption | Yes |
| Network Authentication | Yes,802.1x Network authentication |
| Secure Firmware Upgrade | Yes |
| Anti-roll back firmware | Yes |
| Web login Password protection | Yes |
| Unused debug interface protection | Yes |
OPERATING PARAMETERS:
| Power Supply | 12V (DC); 802.3af (PoE) |
| Power Consumption | Approximately 7W |
| Operating Humidity | Less than 95% RH (non-condensing) |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
PHYSICAL PARAMETERS:
| Communication interface | 10Base-T/100BaseTX Ethernet (RJ-45) |
| Weight | 840gms |
| Color | Infinity White |
| Dimensions | - Diameter x Length: Φ84mmx301.6mm or - Length: 301.6mm x 92.5mm x 84mm (Length x Width x Height) |
| Storage | NAS, SD Card |
| Certifications | BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S,G, T, IK10, OWASP ASVS 4.0 L2 by STQC, NEMA 4x** |
Matrix Satatya 5MP IR Dome POE Camera
IMAGE SENSOR:
| Resolution | 5 MP (2592*1944) |
| Sensor Type and Size | - 1/2.8″ SONY – CMOS 5MP Active Pixel - Progressive Scan, Back-Illuminated Image sensor (STARVIS Series) |
LENS:
| Minimum Illumination | - Color – 0.01 Lux @F1.2 (AGC ON) - Monochrome – 0 Lux |
||||||||||||||||
| Focal Length | 2.8mm, 4mm, 6mm | ||||||||||||||||
| Focus Range | 0.3m to infinity | ||||||||||||||||
| Field of View (FOV) |
|
||||||||||||||||
| Lens Mount | For Fixed Lens: M12x0.5 | ||||||||||||||||
| Focus | Fixed for 2.8mm, 4mm, 6mm | ||||||||||||||||
| Aperture (F#) | Fixed Lens: F 1.6/ F2.0 | ||||||||||||||||
| Iris Type | Fixed Lens: Fixed | ||||||||||||||||
| IR Range | Up to 30m | ||||||||||||||||
| IR Led Wavelength | 850nm | ||||||||||||||||
| IR Switching | Auto/ Manual |
AUDIO INTERFACE:
| Audio Streaming | Two-way Audio (full duplex) |
| Audio Input | 1x (3.5mm stereo female audio jack) (for Premium Variants) |
| Audio Output | 1x (3.5mm stereo female audio jack) (For Premium Variants) |
| Audio IN Impedance | Linear level impedance 1kohm |
| Audio OUT Impedance | Linear level impedance 600ohm |
| Audio Noise Filtering | Yes |
| Audio Sampling rate | 8 KHz |
| Audio Compression | G.726, G.711 a-law and u-law |
HARDWARE SPECIFICATIONS:
| SD Card | Up to 512GB |
| Camera Adjustment Angle |
- Pan – 0° to 330° - Tilt – 0° to 75° - Rotate – 0° to 180° |
IMAGE AND VIDEO:
| No. of Stream Profiles | 4 |
| Stream Profiles |
- Profile 1: 1920 x 1080p @30fps (H.265/H.264) - Profile 2: D1 @30fps (H.265/H.264) - Profile 3: 1920 x 1080p @5fps (MJPEG) - Profile 4: 720p @30fps (H.265/H.264/MJPEG) |
| Available Resolutions | 2592*1944 (5MP), 2592*1520,2048*1536,1920*1080,720p, D1,VGA,2CIF,CIF
|
| Max Resolution | 2592*1944 |
| Bitrate | 128kbps-16Mbps |
| Bitrate Type | CBR, VBR |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1-30fps |
| Shutter Speed | 1/15s -1/100000s |
| Adaptive Streaming | Yes |
| ONVIF Profiles | S, G, & T |
| Edge Recording | Yes |
| Alarm Recording | Pre and Post |
| Motion Recording | Yes |
| Time Triggered | Yes |
| Video Parameters | Snapshot, Region of Interest (ROI), BLC, Day/Night Settings |
| Privacy Masks | 3 |
| WDR | True WDR (120dB) |
| SNR | >70dB |
| Image Enhancement | - Saturation/ Contrast/ Sharpness/Brightness/Auto - Exposure/HVS-Forensics/ Smart IR |
| DNR | 3D |
| Video Analytics | Motion, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception (Only Premium Variants) |
ALERTS:
| IP Conflict | Yes |
| Network Disconnect | Yes |
| Storage Full | Yes |
EVENTS AND ACTIONS:
| Upload Image | SD, NAS, SFTP |
| Upload Clip | SD, NAS, SFTP |
| Notifications | E-mail, SMS, TCP |
PROTOCOLS SUPPORTED:
| Supported protocols | TCP/IP, HTTP, HTTPs, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, SNMP, UPnP, Bonjour |
| Web Viewer | Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0 |
| Browser | IE, Chrome, Mozilla |
CYBER SECURITY:
| Secure boot | Yes |
| Signed firmware | Yes |
| Data Encryption | All data, including sensitive data, is encrypted with AES 256 and RSA 2048 |
| IP Address Filtering | Yes |
| HTTPs Streaming | Yes, using TLS 1.2 |
| Edge Data Encryption | Yes |
| Network Authentication | Yes,802.1x Network authentication |
| Secure Firmware Upgrade | Yes |
| Anti-roll back firmware | Yes |
| Web login Password protection | Yes |
| Unused debug interface protection | Yes |
OPERATING PARAMETERS:
| Power Supply | 12V (DC); 802.3af (PoE) |
| Power Consumption | Approximately 7W |
| Operating Humidity | Less than 95% RH (non-condensing) |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -30°C to 60°C |
PHYSICAL PARAMETERS:
| Communication interface | 10Base-T/100BaseTX Ethernet (RJ-45) |
| Weight | 740g |
| Color | Infinity White |
| Dimensions (mm) | Diameter Φ126 x Length 100 |
| Storage | NAS, SD Card |
| Certifications | BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S, G & T, IK10, STQC Certified with OWASP ASVS 4.0 L2 |
Matrix Satatya 4 Channel NVR
VIDEO:
| Input | 4/8/16 IP Channels |
| Output | HDMI (2.0) – 1 Port (Main) |
| Compression | H.265/H.264/ Motion JPEG |
AUDIO:
| Compression | G.711µ |
THROUGHPUT:
| Downlink Throughput |
180 Mbps The following Scenarios are Considered: 1. Cameras Streaming to Device 2. Cameras of Cascaded Devices being Viewed on HDMI 3. Streaming from NAS for local/web client |
| Downlink Throughput |
213 Mbps The following scenarios are considered: 1. Cameras Streaming to Device 2. Cameras of Cascaded Devices being Viewed on HDMI 3. Recording in Local HDDs, No NAS Connectivity |
| Uplink Throughput |
180 Mbps The following scenarios are considered: 1. Cameras streaming to the web client 2. Storage or backup to NAS 3. Streaming to VMS |
| Uplink Throughput |
205 Mbps The following scenarios are considered: 1. Cameras Streaming to Web Client 2. NVR streaming to cascaded NVRs/VMS |
| Simultaneous Log-in | 9+1(Admin) |
DISPLAY:
| Digital Zoom on Live | Yes |
| Snapshot | Yes |
| Multiple Camera Viewing | Through Cascading (up to 20 Devices) |
| OSD | Channel Number and Name, Status, Video Loss, Recording, and Disabled Channel (As per camera support) |
RECORDING:
| Image Resolution | 12MP, 8MP, 5MP,3MP, 2MP, 720P, D1, CIF |
| Pre-Record | Up to 30 Sec |
| Post-Record | 10-300 Sec |
| Snapshot Format | JPEG |
| Recording Format | AVI, Native |
| Recording Types | Scheduled, Manual, Alarm, and COSEC |
STORAGE AND BANDWIDTH OPTIMIZATION:
| Adaptive Recording | Automatically Reduces the Number of Frames Captured per Second Where There is No Motion, Thereby Saving Storage Space. |
| Bandwidth Optimization | Automatically Adapts Optimized Resolution on Local Display Through HDMI |
PLAYBACK AND BACKUP:
| Synchronous Playback | 16 Channels @ 1080P (via HDMI) |
| Search Mode | Date and Time, Camera, Recording Type, Recording Drive |
| Backup | - Manual Backup over USB and NAS, - Scheduled Backup over USB, NAS and FTP - Scheduled Backup over USB through USB 2.0 interface - Manual Backup over USB through USB 3.0 interface - Quick Backup over USB, NAS and Local PC |
| Configuration Backup | Yes |
| Network Protocols | TCP/IP, DHCP, PPPOE, DDNS, Free Matrix DNS, FTP, SMTP, NTP, RTP/RTSP, CIFS/NFS, Network Acceleration, UDP |
| Maximum User | 128 |
| Remote Operation | Monitor, PTZ Control, Playback, System Setting, File Download, Log Information, Upgrade |
EVENTS AND ACTION:
| Trigger Events | Motion Detection, View Tampering, Trip Wire, Object Intrusion, Audio Exception, Missing Object, Suspicious Object, Loitering, Object Counting, Recording Start, Recording Fail, Camera Offline, Camera Online |
| System Events | Manual Trigger, On Boot Alarm, Storage Alert, Disk Volume Full, Disk Fault, Scheduled Backup Fail |
| Actions | Recording on Selected Channel, Upload Images on FTP/ Email Server, Email Notification with Snapshot, TCP Notification, Recall PTZ Preset Position, Turn On/Off Alarm Outputs, Buzzer Notification, SMS Notification, Calling from Mobile App |
STORAGE INTERFACE:
| SATA Interface | 1 SATA III (10TB per port) |
| NAS | 2 NAS (CIFS, NFS) |
| USB | 1 TB USB DriveRAID |
| RAID | Single Disk |
| Retention | Camera-wise, HDD usage % wise, Day wise |
INTERFACES:
| Network Interface | 1 Port x Ethernet (RJ-45) 10/100/1000Mbps |
| USB | 2 Ports (1x USB 3.0, 1x USB2.0) |
| LED | System Status LED, Power LED |
| Reset Switch | Yes |
| Buzzer | Yes |
SYSTEM INTERFACE:
| Processor | Quad-core 64-bit Cortex-A55 processor |
| RAM | 2GB |
| Flash | 4GBV |
| OS | Embedded Linux |
| Control Mode | Mouse, Web Client, and Mobile Client |
CAMERA SUPPORT:
| Third Party Camera Support | Cameras with ONVIF 2.0 and above |
ENVIRONMENT CONDITIONS:
| Operating Temperature | 0°C to +45°C (32°F to 104°F) |
| Humidity Range | 5% to 95% RH Non-Condensing |
ELECTRICAL AND MECHANICAL:
| Power Input | Adapter 12V DC/2A |
| Dimension(L×B×H) in mm | 266 X 157 X 44 mm |
| Weight (without hard disk) | 490 gm approx |
D-Link 10-Port POE Switch
| Size | Desktop |
| Interfaces |
- 8 10/100/1000 BASE-T ports - 2 10/100/1000 BASE-T Uplink ports |
| Standards |
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) - IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) - ANSI/IEEE 802.3 NWay auto-negotiation - IEEE 802.3x ow contro |
| Media Interface Exchange | Auto MDI/MDI-X adjustment on all ports |
| Lighting Protection | • 6KV |
Performance:
| Switching Fabric | 20 Gbps |
| Transmission Method | Adopt Store-and-forward |
| Data Transfer Rates |
- Gigabit Ethernet - 1000 Mbps - Fast Ethernet - 100 Mbps |
| Packet Filtering / Forwarding Rates |
- 10M port maximum 14800pps - 100M port maximum 148800pps - 1000M port maximum 1488000pps |
PoE:
| PoE Standards |
- IEEE 802.3af - IEEE 802.3at |
| PoE-Capable Ports | Ports 1 to 8 |
| Power Budget | 96 W (30 W max. per PoE port) |
LEDs:
| Power | Yes |
| Link/Activity | Yes |
Physical:
| Weight | 0.95kg |
| Dimensions | 184 x 75 x 27 mm |
| Power | External power adapter: 96W |
| Temperature | Operating: 0 to 40 ˚C (32 to 104 ˚F) |
| Humidity |
- Operating: 0% to 95% RH non-condensing - Storage: 0% to 95% RH non-condensing |
Certifications:
| Safety | LVD |
| EMI/EMC |
- CE - FCC |
