Matrix COSEC Atom RDS300SFE Access Control (Install & Support Incl.)
Matrix COSEC Atom RDS300SFE Access Control (Install & Support Incl.)
Package Includes:
- Matrix COSEC Atom RDS300SFE Access Control (Fingerprint and Mifare Card Based Access Control Reader)
- Matrix COSEC Panel Controller (COSEC PANEL200P)
- Electro Magnetic Lock with Exit Button and Receptionist Button
- Setup and Installation (Materials Included)
- Sognare Care 1-Year Onsite Warranty, 9x5 Next Business Day (NBD), Parts & Labor
Description
Description
This package offers a complete security solution with two Matrix Satatya 2MP IR Bullet POE Cameras, one 5MP IR Dome POE Camera, and a 4 Channel NVR with 4K support and a 6TB Seagate Skyhawk HDD. It includes a D-Link 10-Port POE Switch, full setup, and a 1-year SognareCare Onsite Warranty with next business day service—all for P 54,995 VAT inclusive.
Couldn't load pickup availability
Technical Specifications
Collapsible content

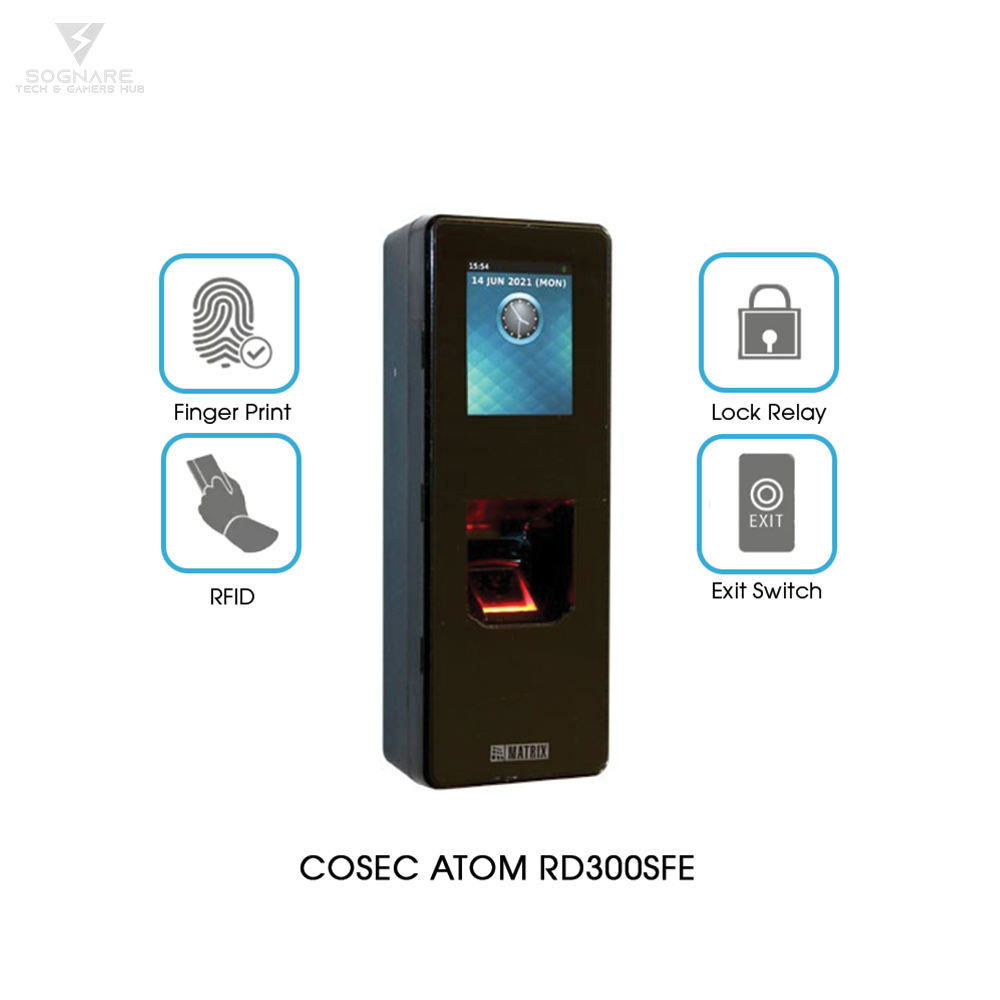

Matrix COSEC Atom RDS300SFE
CAPACITY:
| User Profile | Depends on the Master Device |
| Event Log | Depends on the Master Device |
COMMUNICATION:
| Inbuilt Bluetooth® | Yes |
| WiFi | Yes (802.11 b/g/n) |
INTERFACE:
| RS-232 | Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Wiegand | Yes |
| RS-485 | Yes (Compatible with ARC DC200P) |
HARDWARE:
| Display | 2” Touch screen Display |
| Display Resolution | 320 x 240 Pixel |
| Dimensions | 153mm X 56 mm X 37mm |
| Weight | 330grms (0.72 lbs) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | AM3352 |
| RAM | 256 MB |
| Flash Memory | 256 MB |
| Tamper Detection | Yes |
| Buzzer | Yes (12V Magnetic buzzer) |
| LEDs | No |
| Ingress Protection (IP) | Yes (IP65) |
| Vandal Proof (IK) | Yes (IK06) |
| Keypad | Yes (Touch-Sense Keypad) |
ENVIRONMENTAL:
| Operating Temperature | -20°C to +55°C |
| Humidity | 5% to 95 % RH Non-Condensing |
FINGERPRINT SENSOR:
| Sensor Type | Optical |
| Sensor Name | SFM6030-OC6 |
| Sensor Surface | Scratch Free |
| Resolution | 500 DPI |
| Sensing Area | 16.0mm X 18.0mm |
INSTALLATION:
| Wall Mount | Yes |
| Flush Mount | Yes |
Matrix COSEC Panel Controller (COSEC PANEL200P)
CAPACITY:
| Maximum Door Controllers | 255 |
| Door controller on RS-485 | 32 |
| Max User Capacity | 25,000 |
| Event Buffer | 5,00,000 |
COMMUNICATION:
| Wi-Fi | Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n) |
| Inbuilt Bluetooth | YES |
| Ethernet | YES (10/100 Mbps) |
| RS-485 | YES |
| USB | One USB Port (For data transfer and 2G-3G-4G /WiFi Dongle) |
| SD Card | YES (8GB) |
INTERFACE:
| Aux-In | YES (4 states – short, open, activated & non-activated |
| Aux-Out | Form C and SPDT Relay |
HARDWARE:
| CPU | Cortex A8 800 MHz |
| Flash memory | 256 MB |
| RAM memory | 256 MB (DDR3 SDRAM @ 800MHz) |
| Operating system | Linux based OS |
| Communication Port | Ethernet & RS-485 |
| Tamper Detection | Yes |
| RTC | Yes |
AUDIO VISUAL:
| LED | Tricolor LED (Power, Status & Alarm) |
| Buzzer | YES (12V) |
ENVIRONMENTAL:
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Humidity | 5% to 95 % RH Non-Condensing |
POWER:
| Input Power | External Power Adapter 12 VDC @ 2 A |
MECHANICAL:
| Dimensions (L x H x D) | 125.25mm X 81.5mm X 30.5mm (4.93” x 3.20” x 1.20”) |
| Weight | 140gm (0.308 lbs) |
| Enclosure material | ABS V0 grade |
CERTIFICATES:
| Certificates | FCC, CE, and RoHS |
COMPATIBILITY:
| System Integration | API for Software integration |
| Architecture | 1) Network Architecture – With COSEC CENTRA/VYOM 2) Standalone Architecture |
OTHER DETAILS:
| Mounting | Wall Mounting or Tabletop |
| Packaging Content | 1) Main unit 2) Adaptor (12VDC, 2A) 3) SD Card (8 GB) |
