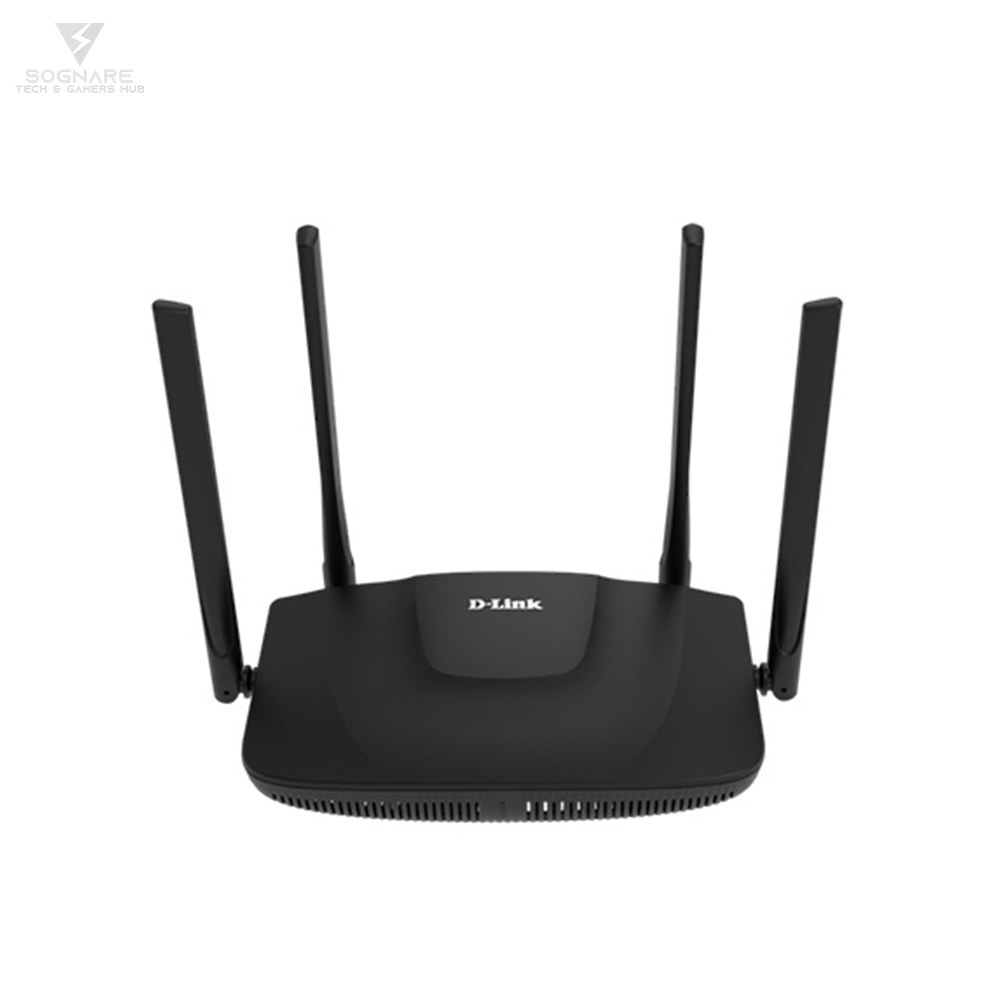

D-Link DIR-825M (AC1200 Dual Band Gigabit 5-in-1 WiFi Router)
D-Link DIR-825M (AC1200 Dual Band Gigabit 5-in-1 WiFi Router)
Product Highlights:
AC Speeds, Wi-Fi Mesh, MU-MIMO Technology, 5-in-1 Operation Modes, Gigabit Ports, Advanced Security, VPN Clients, and 3-Year D-Link Warranty
Description
Description
The DIR-825M AC1200 MU-MIMO Wi-Fi Gigabit Router is a robust wireless networking solution tailored for Small Office/Home Office (SOHO) environments. It combines high-speed 802.11ac Wi-Fi, dual-band technology, and Gigabit Ethernet ports to deliver seamless, flexible networking. With advanced SOHO-class security features, the DIR-825M ensures data protection while extending the range and reliability of your wireless network. Offering lightning-fast speeds of up to 1200 Mbps, it supports high-definition streaming, gaming, and more. The router also includes a Wireless Repeater mode for easy mesh networking and customizable dual-band wireless performance, perfect for secure and efficient SOHO connectivity.
Collapsible content
D-Link DIR-825M (AC1200 Dual Band Gigabit 5-in-1 WiFi Router)
GENERAL:
Device Interface |
- 1x 10/100/1000 WAN Ethernet - 3x 10/100/1000 LAN Ethernet |
LED | Status LED |
Buttons |
- WPS button to set up wireless connection - RESET button to restore factory default settings |
Antenna |
- 2x 5dBi 2.4GHz External Antennas - 2x 5dBi 5GHz External Antennas |
Power connector | Power input connector (DC) |
FUNCTIONALITY:
WAN connection types |
- PPPoE - PPPoE Dual Stack - Static IP - Dynamic IP - PPPoE + Static IP (PPPoE Dual Access) - PPPoE + Dynamic IP (PPPoE Dual Access) |
Network functions |
- DHCP server/client - Dynamic DNS - Static routing |
Firewall functions |
- Network Address Translation (NAT) - Stateful Packet Inspection (SPI) - URL Filter - MAC Filter - IP Filtering - PORT Filtering - DMZ and Port forwarding(Virtual server) - NAPT and ALG - Denial of Service (DoS) protection |
VPN Client | OpenVPN/PPTP/L2TP over IPsec |
Management |
- Firmware update via web-based interface - Saving/restoring configuration to/from file - Access settings through WEB GUI - Automatic NTP Date/time from Internet Time Server - Logs and statistics - IPSec/PPTP/L2TP pass-through - Support TR-069* |
WIRELESS PARAMETERS:
Standards | IEEE 802.11 a/b/g/n/ac |
Frequency & Data Rate |
- 2.4GHz: up to 300Mbps - 5GHz: up to 867Mbps |
Wireless connection security |
- WPA/WPA2/WPA3 Encryption - MAC filter - WPS |
Advanced functions |
- Wireless Client Mode - Wireless AP Mode - Wireless Repeater Mode - Multiple SSID’s - Wireless Schedule |
PHYSICAL PARAMETERS:
Dimensions | 263.5×150.7×214.5mm (W x D x H) |
OPERATING ENVIRONMENT:
Power | Input: 12V DC, 1A |
Temperature |
- Operating: 0 ~ 40 degrees °C - Storage: -40 ~ 70 degrees °C |
Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
ORDER INFORMATION:
Part Number | Description |
DIR-825M | AC1200 Dual Band Gigabit Wi-Fi Router |
