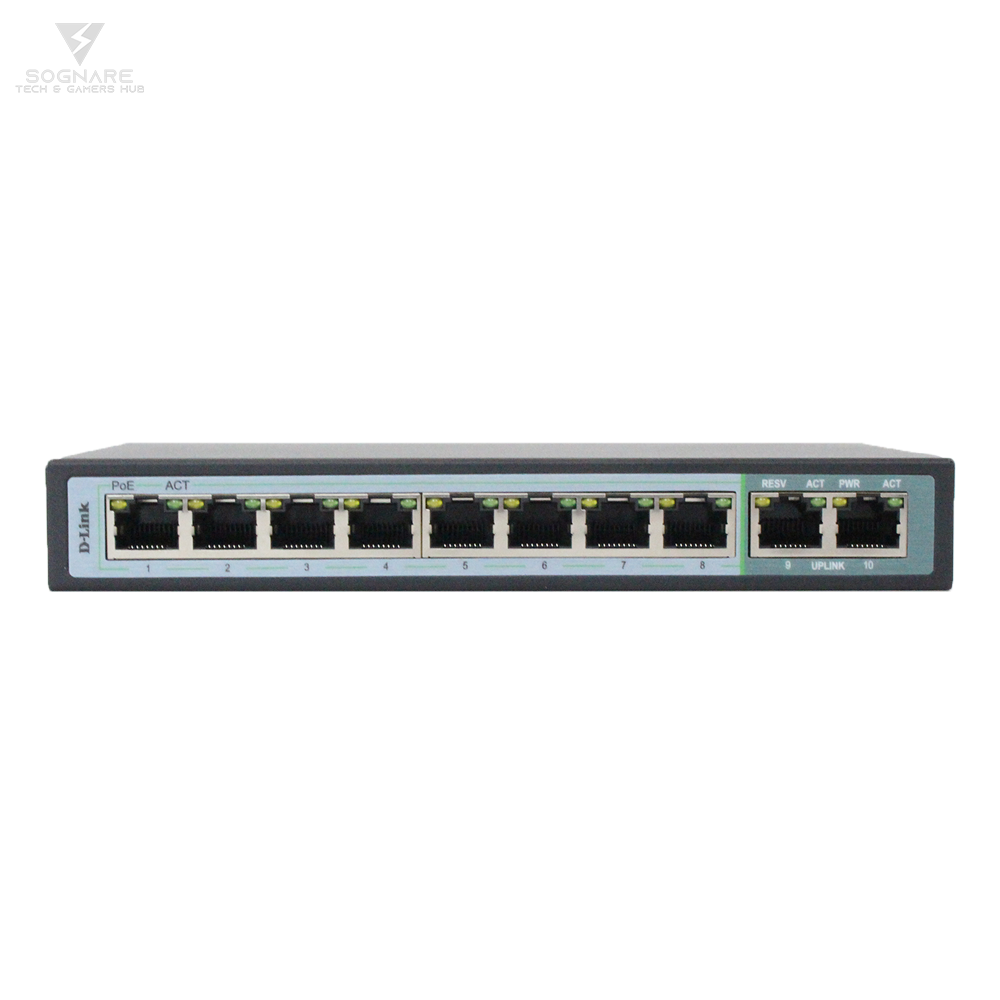

D-Link DGS-F1010P-E 8Port 10/100/1000 Mbps PoE+ with Auto-sensing, Auto - MDI - X

D-Link DGS-F1010P-E 8Port 10/100/1000 Mbps PoE+ with Auto-sensing, Auto - MDI - X

Regular price ₱ 3,800.00 Php
Regular price Sale price ₱ 3,800.00 Php
-Liquid error (snippets/price line 122): divided by 0% OFF Sold out
Tax included.

Product Highlights:

8 10/100/1000 Mbps PoE ports, 2 10/100/1000 Mbps Uplink ports, 96 W PoE budget, Support IEEE802.3af/at up to 30W per port to PoE compatible devices, Support transmission Data/PoE up to 250m cable length, 6KV Lightning protection, Smart Features: Extend, VLAN, QoS and PoE, and Plug & Play Installation

Description

The D-Link DGS-F1010P-E is a 10-port Gigabit switch designed for small businesses and home users, featuring 8 Power over Ethernet (PoE) ports. It supports IEEE 802.3af and IEEE 802.3at protocols, providing up to 30W per port and a total power budget of 96W, allowing easy connection of PoE devices like wireless access points, IP cameras, and IP phones without additional power supplies. Compact and silent, this switch is ideal for any room or office. It offers high performance with plug-and-play installation, auto MDI/MDI-X support, and wire-speed filtering, ensuring efficient and seamless network operations.

View full details

Technical Specifications

Collapsible content

D-Link DGS-F1010P-E 8Port 10/100/1000 Mbps PoE+ with Auto-sensing, Auto - MDI - X

GENERAL:

Size  Desktop
Interfaces

- 8 10/100/1000 BASE-T ports

- 2 10/100/1000 BASE-T Uplink ports

Standards

- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

- ANSI/IEEE 802.3 NWay auto-negotiation

- IEEE 802.3x ow contro

Media Interface Exchange Auto MDI/MDI-X adjustment on all ports
Lighting Protection 6KV



PERFORMANCE:

Switching Fabric  20 GBPS
Transmission Method Adopt Store-and-forward
Data Transfer Rates

- Gigabit Ethernet

- 1000 Mbps

- Fast Ethernet

- 100 Mbps

Packet Filtering / Forwarding Rates

- 10M port maximum 14800pps

- 100M port maximum 148800pps

- 1000M port maximum 1488000pps



PoE:

PoE Standards

- IEEE 802.3af

- IEEE 802.3at

PoE-Capable Ports Ports 1 to 8
Power Budget 96 W (30 W max. per PoE port)



LEDs:

Power Yes
Link/Activity Yes



PHYSICAL:

Weight  0.95kg
Dimensions 184 x 75 x 27 mm
Power External power adapter: 96WV
Temperature Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity

- Operating: 0% to 95% RH non-condensing

- Storage: 0% to 95% RH non-condensing



CERTIFICATIONS:

Safety LVD
EMI/EMC

- CE

- FCC
