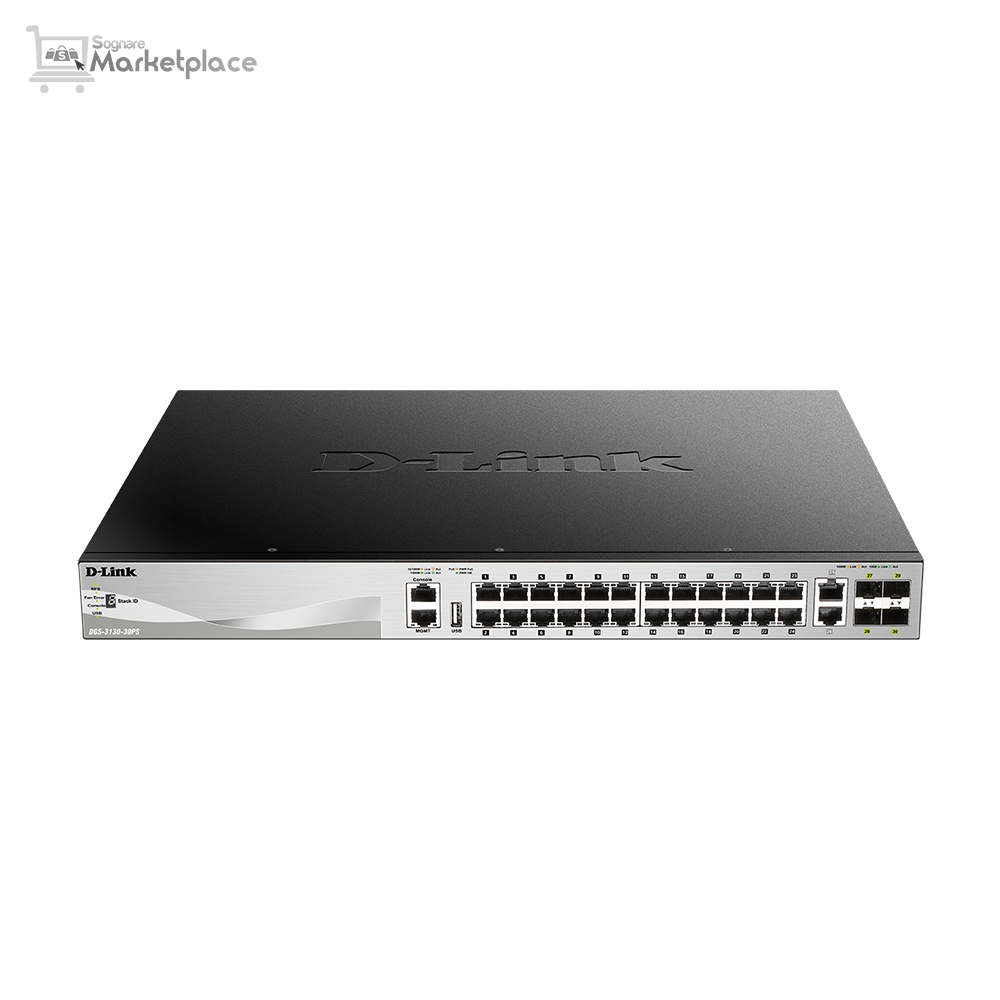

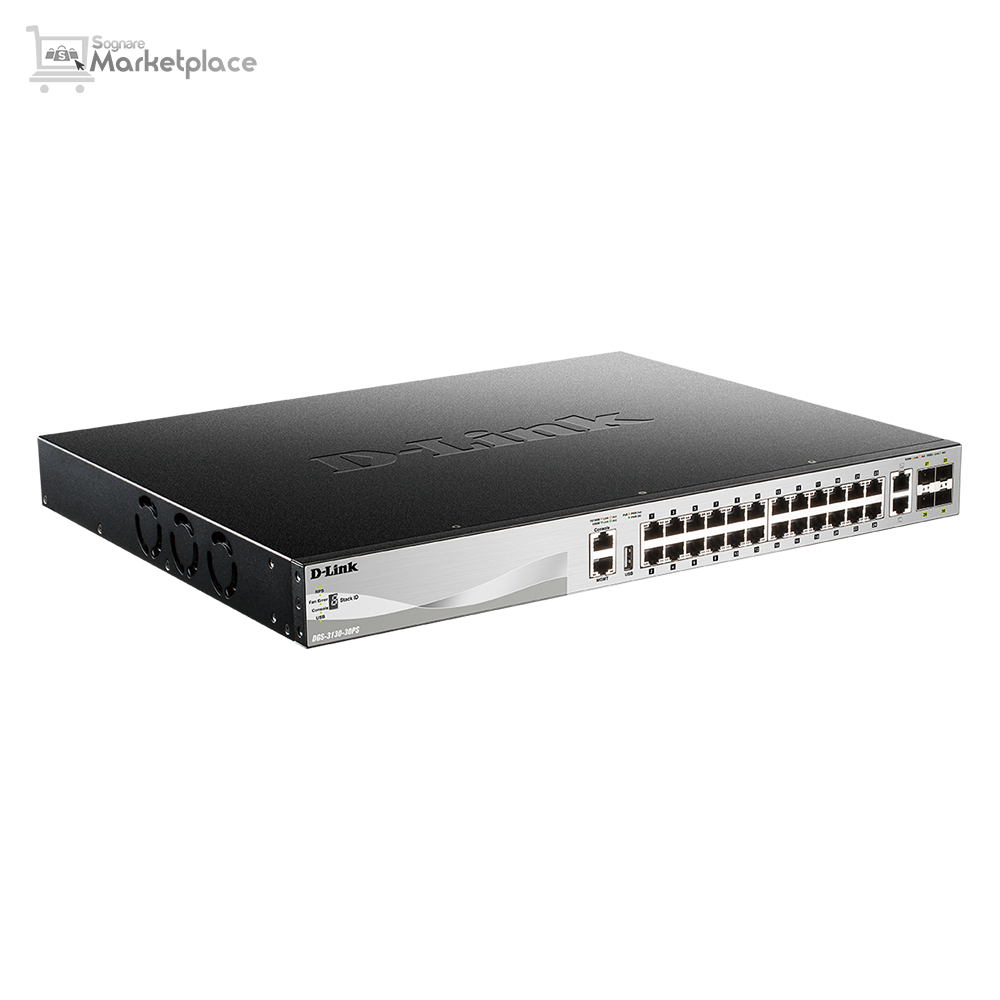

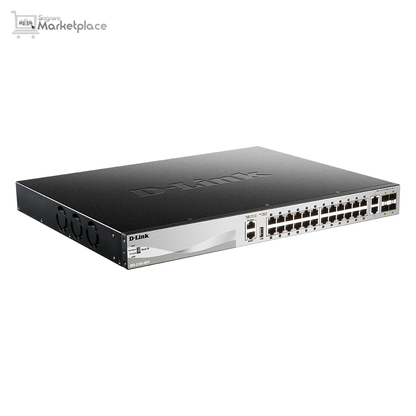

DGS-3130-30PS 30-Port Lite Layer 3 Stackable Managed PoE Switch
DGS-3130-30PS 30-Port Lite Layer 3 Stackable Managed PoE Switch
Product Highlights:
24 × Gigabit PoE+ Ports with 370W PoE Budget, 2 × 10GBASE-T & 4 × 10G SFP+ Uplink Ports, Lite Layer 3 Managed Switching with RIP/RIPng & OSPF, Physical Stacking of up to 9 Switches, and Enterprise-Class Redundancy & Security Features
The D-Link DGS-3130-30PS is a 30-port Lite Layer 3 Stackable Managed PoE Switch designed for enterprise, campus, and SMB networks. It combines advanced Layer 2 and Layer 3 networking features, high-speed 10 Gigabit uplinks, and robust Power over Ethernet (PoE+) capabilities, making it ideal for powering wireless access points, IP cameras, VoIP phones, and other network devices. With physical stacking support, redundant power options, and enterprise-grade security, it provides a scalable and reliable networking solution.
Specifications
Specifications
Switch Type: Lite Layer 3 Stackable Managed PoE Switch
Ports:
24 × 10/100/1000BASE-T PoE+ RJ-45 Ports
2 × 10GBASE-T Uplink Ports
4 × 10G SFP+ Uplink Ports
1 × RJ-45 Management Port
1 × USB 2.0 Port
PoE Standard: IEEE 802.3af / IEEE 802.3at (PoE+)
PoE Budget: 370W (Expandable to 740W with DPS-700 Redundant Power Supply)
Switching Capacity: 168 Gbps
Packet Forwarding Rate: 125 Mpps
Stacking: Up to 9 Physical Switches (80 Gbps Stacking Bandwidth per Device)
Management: Web GUI, CLI, SNMP, SSH, Telnet
Layer Features: Layer 2 / Lite Layer 3 (Static Routing, RIP/RIPng, OSPFv2/v3)
Network Standards: VLAN, QoS, LACP, STP/RSTP/MSTP, ERPS, IGMP Snooping
Security: 802.1X Authentication, Access Control Lists (ACL), DHCP Snooping, IP-MAC-Port Binding, D-Link Safeguard Engine
Dimensions: 440 × 350 × 44 mm
Weight: 4.66 kg
Power Input: 100–240V AC, 50/60 Hz
