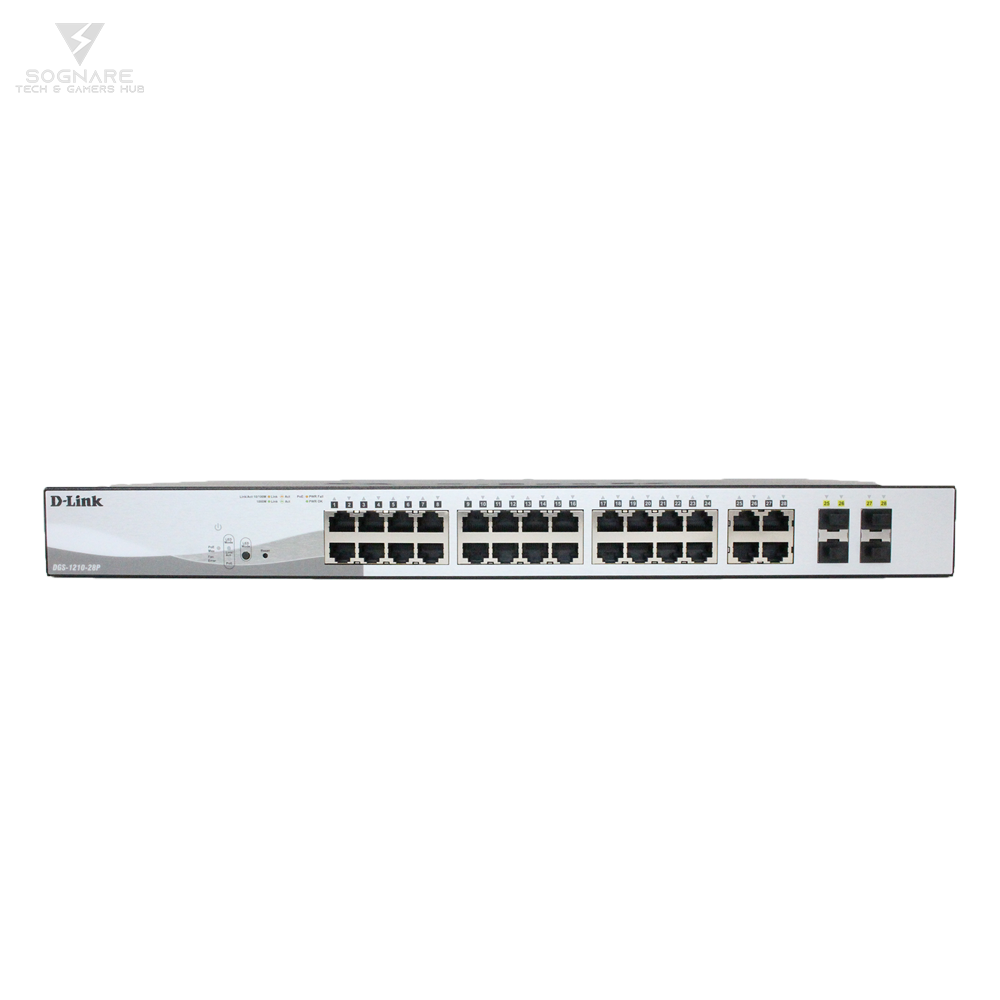

D-Link DGS-1210-28P 28-port Gigabit Smart Managed PoE (193W) Switch with 4-port Gigabit Combo Uplinks
D-Link DGS-1210-28P 28-port Gigabit Smart Managed PoE (193W) Switch with 4-port Gigabit Combo Uplinks
Product Highlights:
24 x 10/100/1000BASE-T PoE ports, 4 x Gigabit RJ45/SFP Combo ports, Advanced L2 switching and security features, L2+ Static Routing, Optional “standard mode” or “surveillance mode” management user interface, and 193 W PoE budget
Description
Description
Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
Couldn't load pickup availability
Technical Specifications
Collapsible content
D-Link DGS-1210-28P 28-port Gigabit Smart Managed PoE (193W) Switch with 4-port Gigabit Combo Uplinks
INTERFACE:
| Size |
- 19-inch standard rack-mount width - 1U height |
| Interfaces |
- 24 10/100/1000BASE-T PoE - 4 1G SFP |
| Port Standards & Functions | Ports 1 to 24 compliant with IEEE 802.3at |
| Console Port | RJ-45 console port |
| Other Port Standards & Functions |
- IEEE 802.3i 10BASE-T Ethernet (twisted-pair copper) - IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) - IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) - IEEE 802.3az compliance - Auto-negotiation - IEEE 802.3x Flow Control - IEEE 802.3z 1000BASE-X Gigabit Fiber |
| Network Cables | UTP Cat. 5, Cat. 5e (100 m max.) |
| Full/Half-Duplex | - Full/half-duplex for 10/100 Mbps speeds - Full-duplex for 1000 Mbps speed |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all twisted-pair ports |
PERFORMANCE:
| Switching Capacity | 56 Gbps |
| Forwarding Method | Store-and-forward |
| MAC Address Table Size | 16K entries |
| MAC Address Update | Up to 256 static MAC entries |
| 64-byte Max. Forwarding Rate | 41.7 Mpps |
| CPU Memory | 256 MB DDR3 |
| Packet Buffer | 1.5 MB |
| Flash Memory | 32 MB |
LEDs:
| Power (per device) | Yes |
| Console (per device) | Yes |
| Link/Active/Speed (per port) | Yes |
| Fan Error | Yes |
PHYSICAL/ENVIRONMENT:
| MTBF | 331,699 hours |
| Acoustic |
- High speed: 52.9 dB(A) - Low speed: 45.3 dB(A) |
| Heat Dissipation | 857.98 BTU/hr |
| Power Input | AC Input: 100 to 240 V AC, 50/60 Hz |
| Maximum Power Consumption |
- 251.5 W (PoE on) - 28.7 W (PoE off) |
| Maximum PoE Budget | 193 W |
| Standby Power Consumption |
- 18.4 W/100 V - 16.1 W/240 V |
| Dimensions (W x D x H) | 440 x 210 x 44 mm |
| Ventilation | 2 x Smart fans |
| Weight | 3.34 kg |
| Power Surge Protection | All Gigabit Ethernet ports support IEC 61000-4-5 surge protection |
| Operating Temperature | -5 to 50 °C (23 to 122 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 10% to 90% non-condensing |
| EMI | FCC class A, CE class A, VCCI, BSMI, CCC |
| Safety Certifications | CE, LVD, UL, CB |
