D-Link DES F1018P-E (16 100Mbps 250m PoE + 1 Gigabit and 1 Combo Uplink)

D-Link DES F1018P-E (16 100Mbps 250m PoE + 1 Gigabit and 1 Combo Uplink)

₱ 7,411.00 Php
₱ 7,411.00 Php
Sale Sold out
Taxes included.

Product Highlights:

150 Watts Available for PoE, Plug-and-Play Installation, IEEE802.3 af/at Standards, 6KV Lightning Protection, 250M Transmission Distance, QoS Video Streaming , VLAN Port Isolation, and 3-Year D-Link Warranty

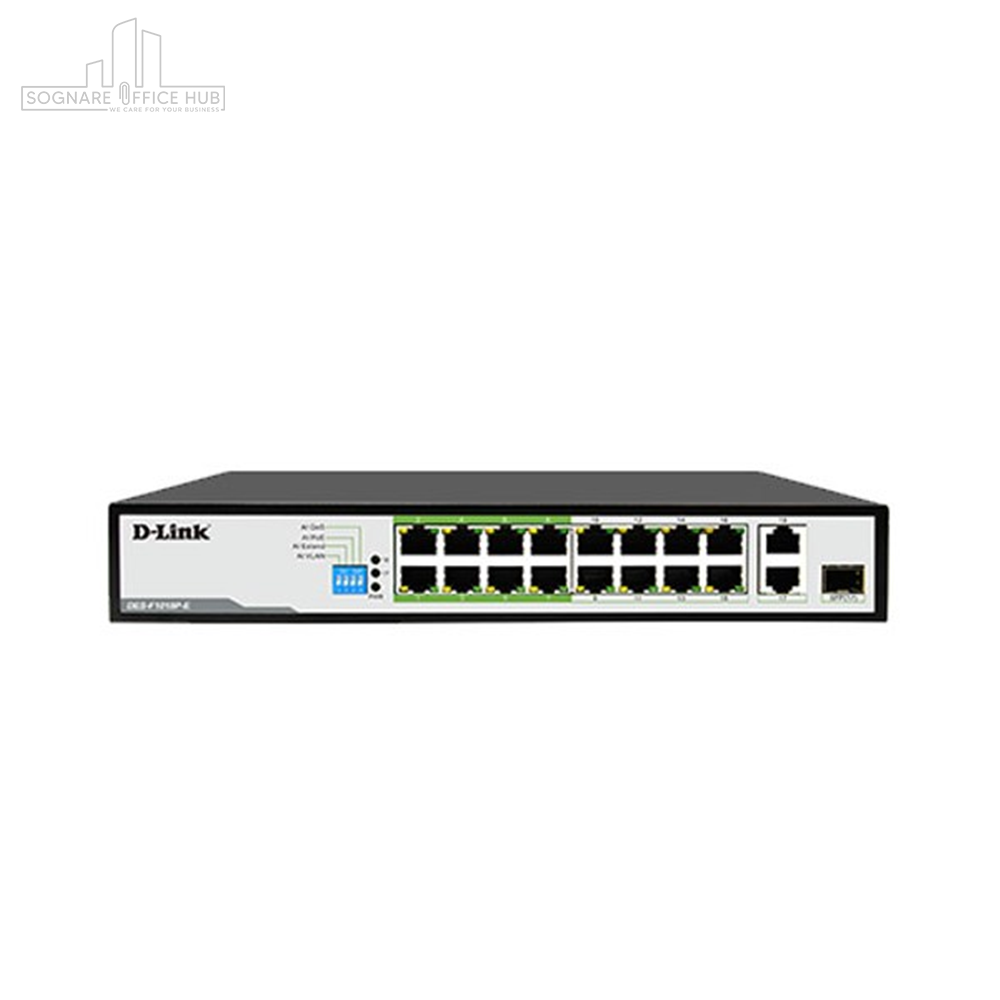

The D-Link DES-F1018P-E 18 Port 10/100 Switch with 16 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. The DES-F1018P-E can also connect other Ethernet devices likecomputers, printers, and a Network Attached Storage (NAS) to fit into any type ofnetwork application.

Specifications

  • PoE Ports: 16 × 10/100 Mbps PoE RJ45 ports (Port 1 to Port 16)
  • Uplink Ports: 1 × 10/100/1000 Mbps RJ45 port & 1 × Combo non-PoE RJ45 port (Port 17 to Port 18)
  • Transmission Rate: 10/100 Mbps per port with MDI/MDIX auto-flip and auto-negotiation
  • Ethernet Media: 10BASE-T or 100BASE-TX Ethernet RJ-45
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3af/at Power over Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • Switching Bandwidth: 2 Gbps (non-blocking)
  • Network Delay: Maximum 20 μs (100M to 100M bps using 64-byte packets)
  • Frame Forwarding Rate:10M: 14,800 pps100M: 148,800 pps
  • Total PoE Budget: 150W
  • PoE Pin Assignment: 1/2 (+), 3/6 (-)
  • LED Indicators: Power, LINK/ACT, POE
  • Surge Protection: 6KV Lightning protection
  • Dimensions (L × W × H): 285 × 180 × 44 mm
  • Weight: 1.05 kg
  • Certification: EMC CE
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -10°C to 70°C
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Humidity: 5% to 90% non-condensing
