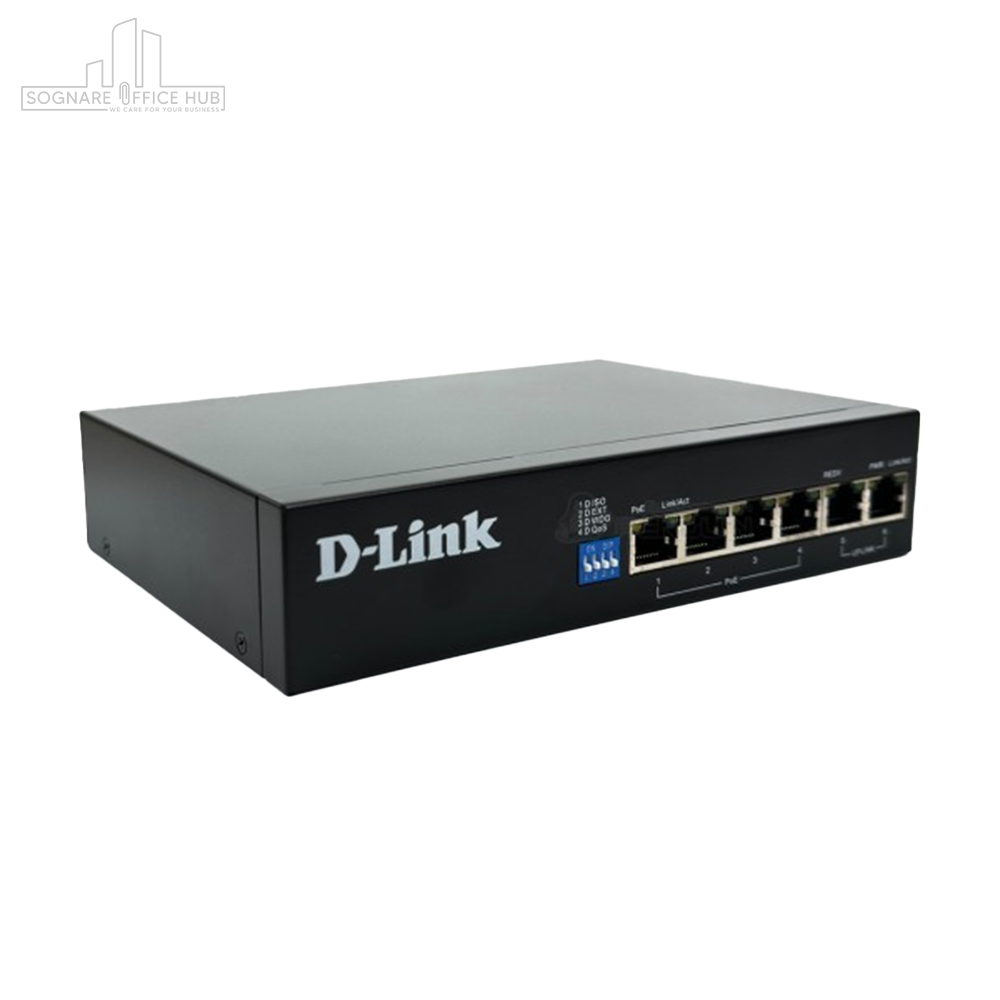

D-Link DES-F1006P-E 4+2 100Mbps 250m PoE Switch

D-Link DES-F1006P-E 4+2 100Mbps 250m PoE Switch

₱ 1,736.00 Php
₱ 1,736.00 Php
Sale Sold out
Taxes included.

Product Highlights:

60 Watts Available for PoE, Plug-and-Play Installation, 6KV Ligthning Protection, 250M Transmission Distance, QoS Video Streaming, Intelligent PD Auto Recovery , VLAN Port Isolation, and 3 Year D-Link Warranty

D-Link Unmanage PoE Switch/Hub 6 Port (4 PoE + 2 Uplink) model DES-F1006P-E supports cable distances of 250 meters. It has Vlan (Port Isoration) Ai Function to monitor operation. Power for PoE Port 60W supports PoE devices using IEEE802.3af/at standards.

Specifications

  • Network Interfaces:4 × 10/100 Mbps PoE RJ45 ports (Ports 1 to 4)2 × 10/100 Mbps non-PoE RJ45 ports (Ports 5 and 6)
  • Transmission Rate: 10/100 Mbps (Each port supports MDI/MDIX auto-flip and auto-negotiation)
  • Physical Interface Type: 10BASE-T or 100BASE-TX Ethernet RJ-45
  • Supported Standards:IEEE 802.3i (10BASE-T)IEEE 802.3u (100BASE-TX)IEEE 802.3ab (1000BASE-T)ANSI/IEEE 802.3 NWay auto-negotiationIEEE 802.3x Flow ControlIEEE 802.3af/at PoE standard
  • Backplane Bandwidth: 1.2 Gbps (non-blocking)
  • Network Delay: Maximum 20 μs (100M to 100M bps, using 64-byte packets)
  • Frame Filtering & Forwarding Rate:10M: 14,800 pps100M: 148,800 pps

Power & PoE Specifications

  • PoE Pin Assignment: 1/2 (+), 3/6 (-)
  • Total Power Consumption: 65W Max
  • Dimensions (L × W × H): 137 mm × 122 mm × 33 mm
  • Weight: 0.40 kg
  • Lightning Protection: 6KV
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -10°C to 70°C
  • Operating Humidity: 10% to 90% RH (non-condensing)
  • Storage Humidity: 5% to 90% RH (non-condensing)
  • LED Indicators: Power, LINK/ACT, POE
  • Electromagnetic Compatibility (EMC): CE Mark
