Cosec Argo Face Time Attendance (Install & Support Incl.)
Cosec Argo Face Time Attendance (Install & Support Incl.)
Package Includes:
- Matrix COSEC Argo Face Time Attendance Terminal (with Support for Access Control)
- Setup and Installation (Materials Included)
- Sognare Care 1-Year Onsite Warranty, 9x5 Next Business Day (NBD), Parts & Labor
Description
Description

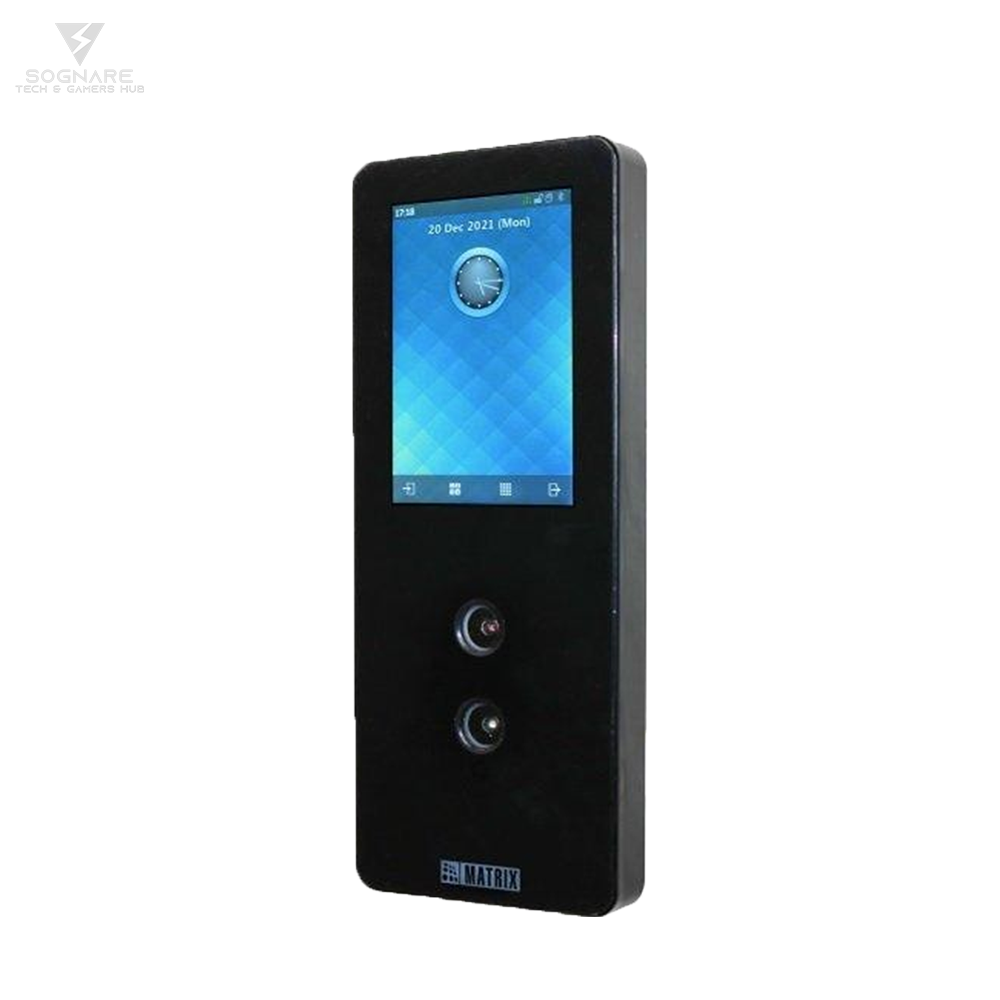

Cosec Argo Face helps track time and control access using face recognition, EM Prox cards, PINs, and mobile phones. It has a 2MP camera, a strong 3.5" touch screen, and is built to last with tough materials. It connects through Ethernet, PoE, Wi-Fi, USB, BLE, and can use 3G/4G/LTE with an external dongle. It supports up to 50,000 users, stores 200,000 face templates, and records 500,000 events quickly and accurately. The terminal can detect faces in real-time with an IR camera and can be mounted in different ways.
Couldn't load pickup availability
Technical Specifications
Collapsible content
Matrix COSEC Argo Face
CAPACITY:
| User Profiles | 50,000 |
| Face Templates | 200,000 |
| Max. Templates Per User | 30 |
| Event Logs | 500,000 |
FACE RECOGNITION:
| Algorithm | Deep Learning based Face Recognition |
| Fake Face Detection | Yes |
| Face Identification |
- :200,000 in < 1 sec - 1:1 in < 0.5 sec |
| Face Enrolment | - Face Recognition Terminal - Enrolment Station - Upload Images - Exception Faces |
GENERAL SPECIFICATIONS:
| Dimensions (WxHxD) | 74 mm x 186mm x 50mm |
| Weight | 0.65Kgs (1.433 lbs) |
| Display | 3.5″ IPS LCD (Touch Screen) |
| Display Resolution | - 480 x 320 Pixel - Yes (Gorilla Glass 3) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Quad Core ARM Cortex-A7 @ 1.5 GHz |
| GPU | Built-in 2 TOPS Neural Network Computing Performance |
| RAM | 2 GB DDR4 |
| Flash Memory | 16 GB eMMC16 GB eMMC |
| SD Card | No (Built-in 16GB eMMC provided) |
| Tamper Detection | Yes |
| Buzzer | Yes |
| IR LEDs | Yes |
| Ingress Protection | IP65 |
| Vandal Protection | IK06 |
| Certificate | CE, FCC, BIS, UL, RoHS |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95 % RH Non-Condensing |
CAMERA:
| RGB Camera | 2MP Surveillance Grade, IR Blocked |
| Infrared Camera | 2MP Surveillance Grade, IR Band Pass |
| Camera Sensors | SONY IMX 307, EXMOR Technology, STARVIS Series |
COMMUNICATION:
| Ethernet | Yes (10/100 Mbps – 1 port) |
| PoE | Yes (IEEE 802.3 af) |
| WiFi | Yes (802.11 b/g/n) |
| 3G/4G/LTE | Yes (Additional USB Modem) |
| BLE | Yes (Version4.2) (8m Range) |
|
USB |
- Yes (USB 2.0) - Micro USB-Type B |
INTERFACE:
| Exit Switch Interface | Yes |
| External Reader Support | Yes (MATRIX and 3rd Party) |
| External Reader | - Interface - RS232 - Wiegand - Power - 12VDC @ 0.5A - LED and Buzzer Control - Allowed – GREEN LED - Buzzer |
| Wiegand |
- Yes (Selectable IN/OUT) - IN: 26 Bit format - OUT: Configurable |
| Door Lock Relay | Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power | - Internal PoE Power: 12VDC @ 0.250 A - Internal Adapter Power 12VDC @ 0.5 A - External Power 12VDC @ 2A |
INSTALLATION:
| Wall Mount | Yes – Plastic Back Cover with Screws |
| Flush Mount | Yes – Metal Bracket with Screws |
ACCESSORIES:
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
