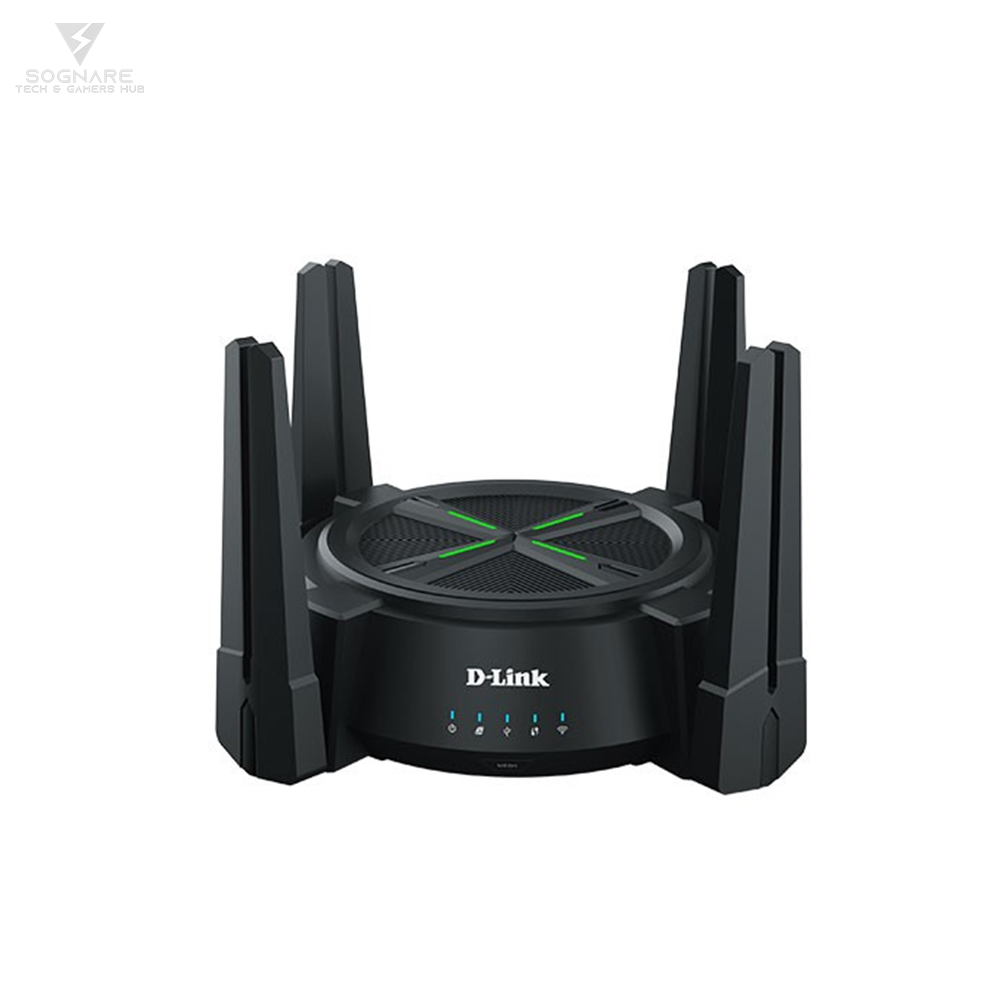

AX6000 Mesh Multi Gigabit Wi-Fi 6 Router
AX6000 Mesh Multi Gigabit Wi-Fi 6 Router
Product Highlights:
Wifi 6, Exceptional Performance, 6000 Mbps Speed, Wifi Mesh, Quad Core CPU, Wifi Coverage, 2.5 GE Port, Enhanced Security, and 3-Year D-Link Warranty
Description
Description
Our Dual-Band Wi-Fi 6 Router offers blazing speeds up to 6000Mbps for seamless streaming, downloading, and gaming. With OFDMA and MU-MIMO technology, it supports multiple devices with minimal lag. It features a 2.5G multi-gigabit port, extensive coverage up to 500㎡, and Easy Mesh R2 support. Manage easily via the D-Link Wi-Fi Connect app and built-in Ookla Speedtest. Powered by a 2.0GHz quad-core ARM Filogic 830 CPU and supporting TR069 for remote access, this router ensures top-tier performance and flexibility.
Collapsible content
AX6000 Mesh Multi Gigabit Wi-Fi 6 Router
HARDWARE:
Standards |
- IEEE 802.11ax/ac/n/a 5 GHz - IEEE 802.11ax/n/b/g 2.4 GHz |
Data Interfaces |
- 1 x 10/100/1000/2500 Gigabit WAN port - 1 x 10/100/1000/2500 Gigabit LAN port - 3 x 10/100/1000 Gigabit LAN ports - 1 x USB 3.0 - 1148Mbps for 2.4GHz band(802.11ax 40Mhz 4x4) - 4804Mbps for 5.0GHz band (802.11ax 160Mhz 4x4) - 8 antennas, AX6000 |
LEDs |
- Power - Internet - 4 LAN LEDs ( LAN 1 - LAN 4 ) LEDs at LAN ports - USB - Wi-Fi - Mesh/WPS |
Buttons | Power ON/OFF Switch, RESET, WPS/MESH |
SOFTWARE:
WiFi Encryption | WEP, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
Network Security | Access Control, IP & MAC Binding |
Guest Network | 4*5GHz Guest Network /4*2.4GHz Guest Network |
WAN Type | DHCP, Static IP, PPPoE |
Quality of Service | QoS by Device |
Forwarding | Virtual Servers, DMZ, UPnP |
Compliance | CE, FCC, MCMC MTSFB TC T007:2020 SHORT RANGE DEVICES - SPECIFICATIONS (SECOND REVISION) |
IPv6 |
- IPv6 and IPv4 dual stack - IPv6 Tunnels: DS-Lite - IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
Mesh | Support 1 Main + 3 Satellite ( 1 +3 ) |
Mobile Apps | D-Link Wi-Fi Connect ( Android & IOS ) |
DDR/FLASH | 1G/128MB Single Flash Dual Image |
Operating System |
- PC - Microsoft,MacOS - Mobile - Android,Apple iOs |
Management |
- Support Quick Installation Wizard - Support configuration saving, and restore to factory configuration - Support firmware upgrading via WEB GUI • Support Syslog monitoring - TR-069/TR-181/TR-143 compliance |
OPERATING ENVIRONMENT:
Power Supply | 12V/3A power supply |
Temperature |
- Operating temperature: 0°C — 60°C, Operating humidity: 10-85%(non-condensed) - Storing temperature: -40°C — 80°C , Storing humidity: 5-95%(non-condensed) |
Dimensions |
- Device: 267mm x 267mm x 167mm - Box: 405mm x 340mm x 186mm |
Weight |
- Device: 680g - Box : 1260g ( with device ) |
